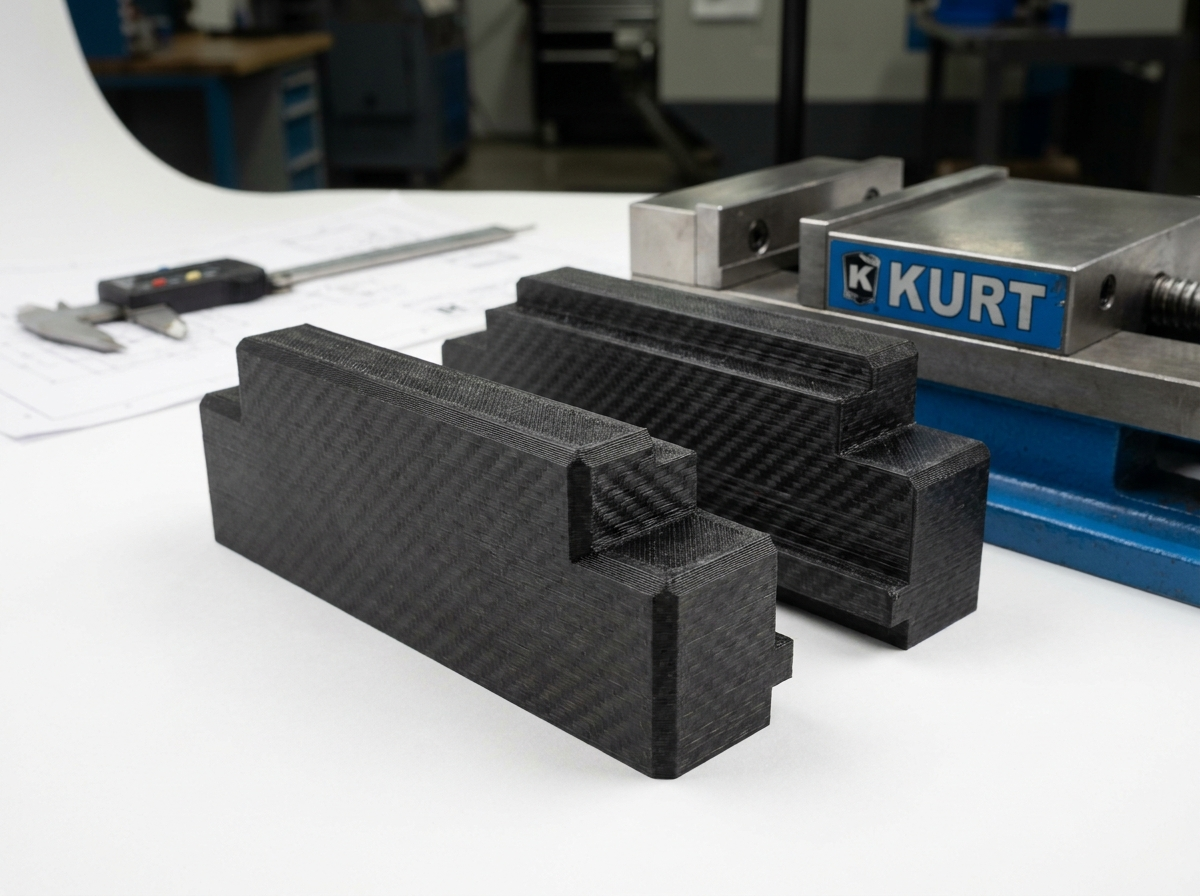

Kurt 6″ Vise Soft Jaw, Stepped
Custom-stepped soft jaw set for a thin-wall extrusion held during the second op. Replaces aluminum jaws that were marring the part surface.
QTY · 4
5 days
± 0.15 mm
A working catalog of parts we’ve made.
Every job is custom — there is no “product” here. What follows is a representative sample of the work that moves through the studio in a typical month: a survey of categories, materials, and dimensional ranges, organized by application.
Drill Locating Guide, 4-Point
Self-aligning drilling guide for a sheet-metal sub-assembly. Reduced fixture time per part from 90 seconds to under 20.
QTY · 2
4 days
± 0.10 mm

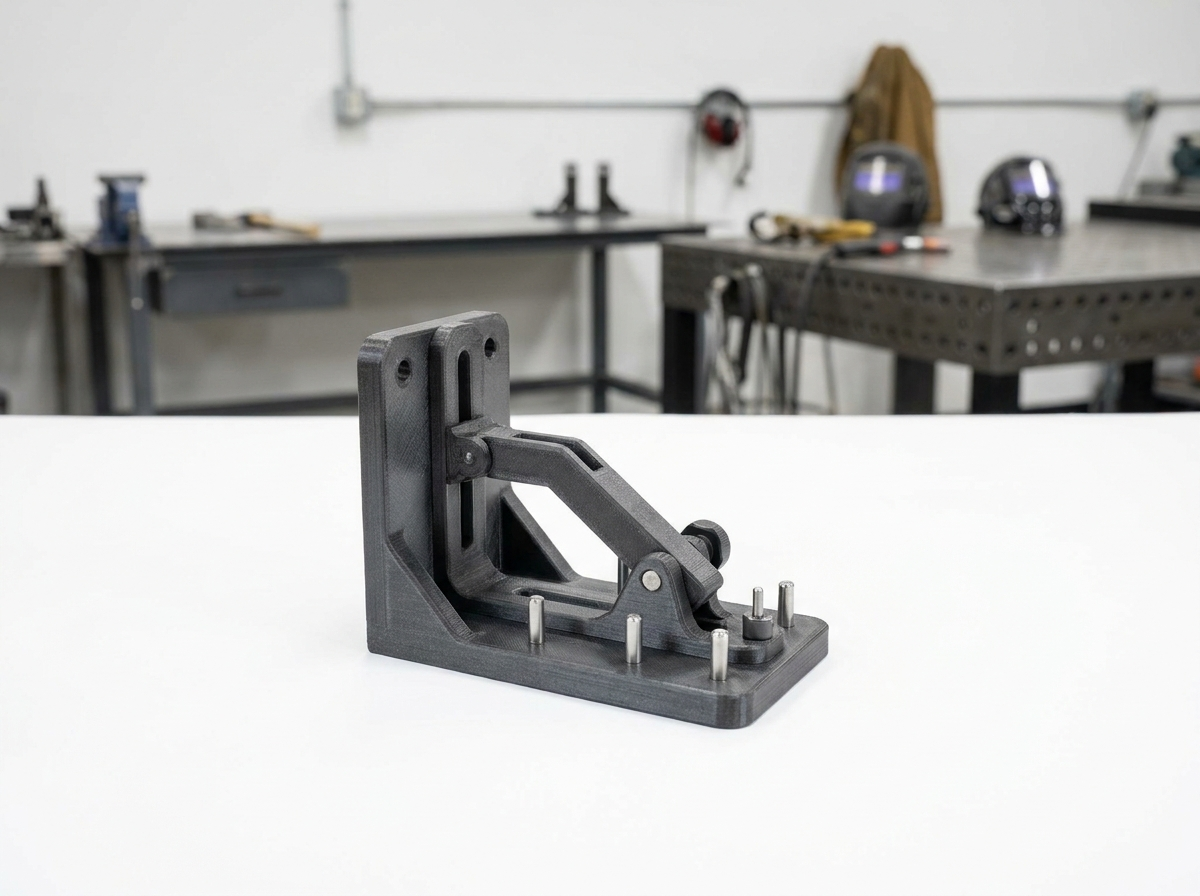

Weld-Up Tacking Fixture
Heat-isolated tacking fixture for a small steel bracket assembly. Locates four parts and clamps with a cam handle.
QTY · 1
6 days
± 0.20 mm

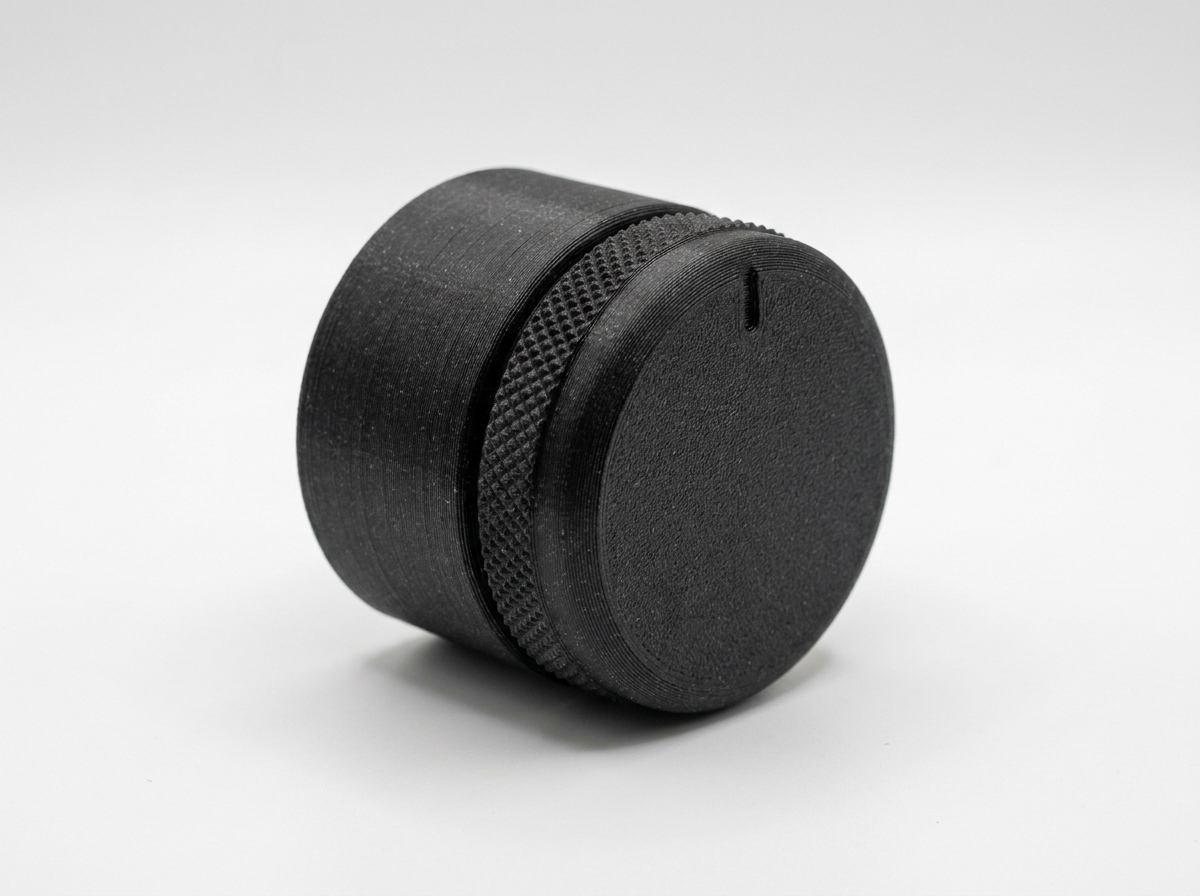

Sub-Zero Freezer Knob, OEM-Profile
Reverse-engineered control knob for a 1990s built-in freezer. OEM part discontinued; printed in run quantities for an appliance repair company.
QTY · 18
5 days
± 0.10 mm
Tractor Throttle Detent Gear
Cogged interior gear for an older Kubota throttle assembly. Reverse-engineered from a worn original.
QTY · 2
7 days
± 0.08 mm

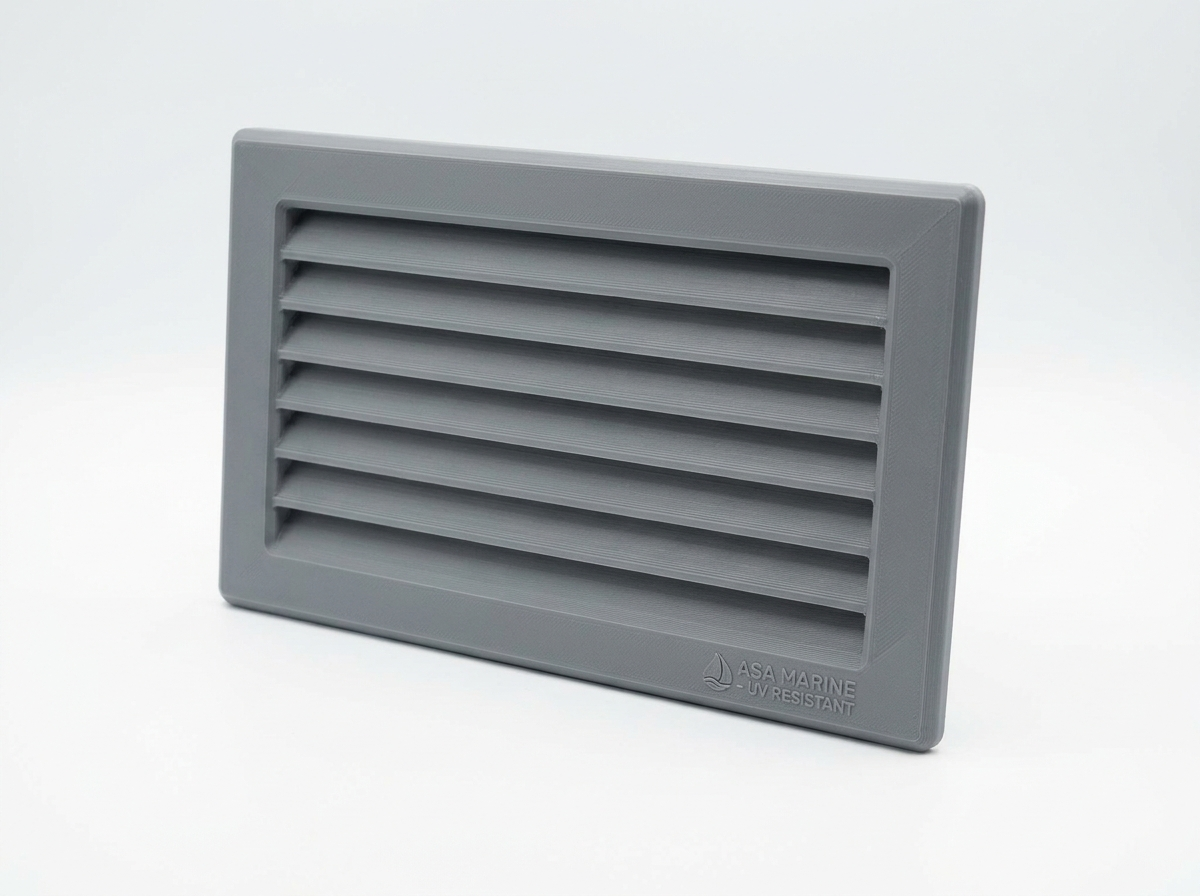

Marine HVAC Vent Bezel
Cabin air-vent trim for a center-console boat. Saltwater destroyed the OEM ABS bezel in three seasons.
QTY · 6
5 days
± 0.20 mm

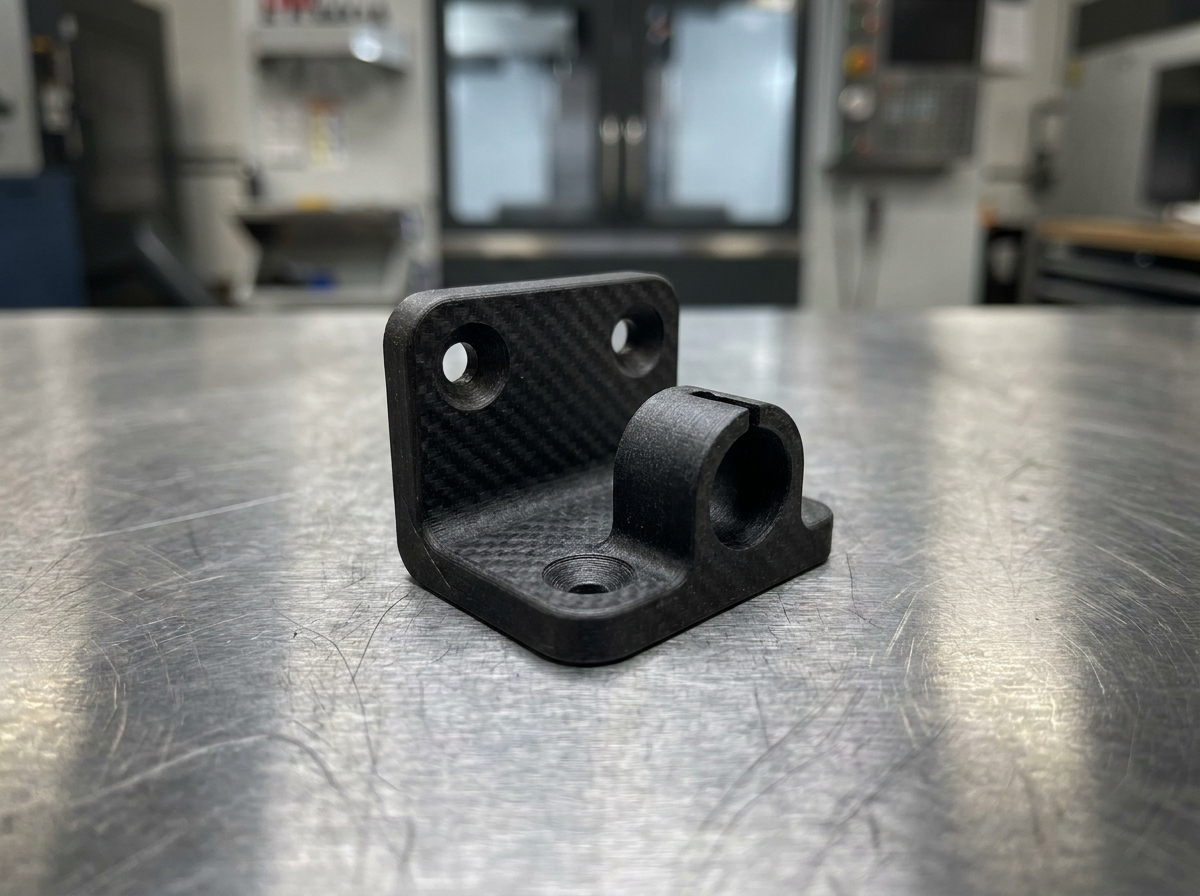

Exhaust Manifold Sensor Bracket
Replacement bracket mounting a temperature sensor to an exhaust manifold on a piece of equipment. OEM bracket cracked from thermal cycling; PAHT-CF handles continuous 160°C with peaks to 180°C.
QTY · 2
5 days
± 0.20 mm

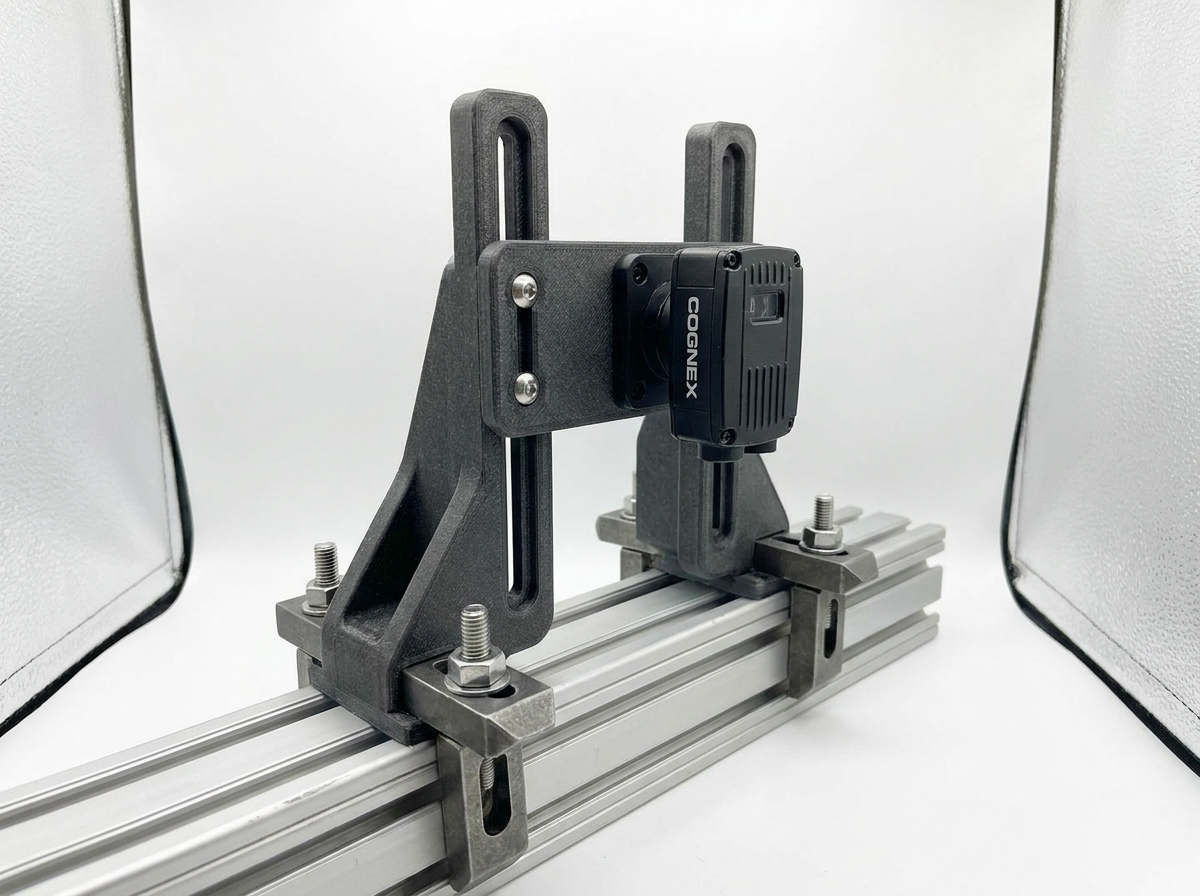

Cognex Barcode Scanner Mount
Adjustable mounting bracket for a fixed-position barcode scanner over an inbound conveyor. Slotted for vertical adjustment.
QTY · 3
4 days
± 0.15 mm
IP Camera Enclosure, Plant Floor
Adapter housing fitting an IP camera to a standard NEMA-style junction box at an inspection station. Lens-recessed for glare control.
QTY · 4
5 days
± 0.20 mm

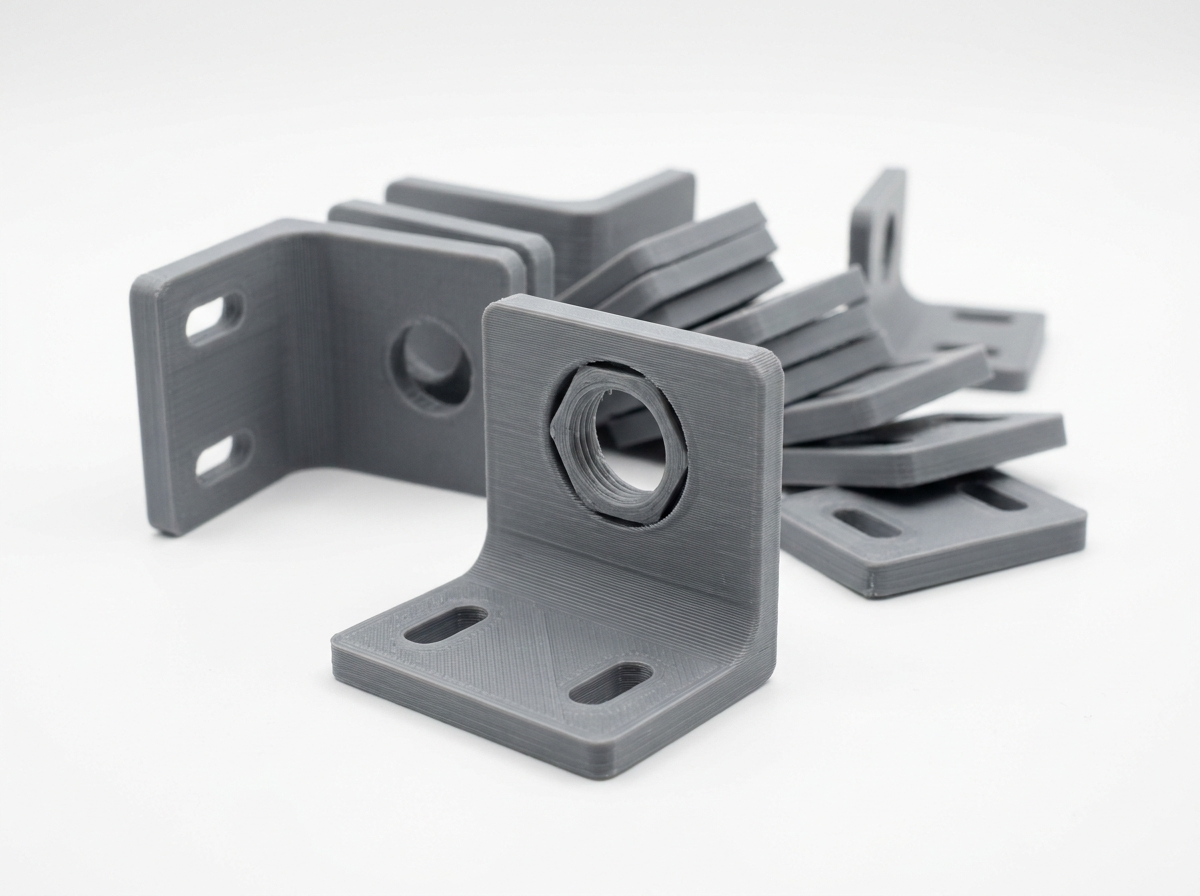

Proximity Sensor L-Bracket
Mounting bracket for an inductive proximity sensor monitoring a feed line. Repeatable to install across multiple stations.
QTY · 12
3 days
± 0.15 mm

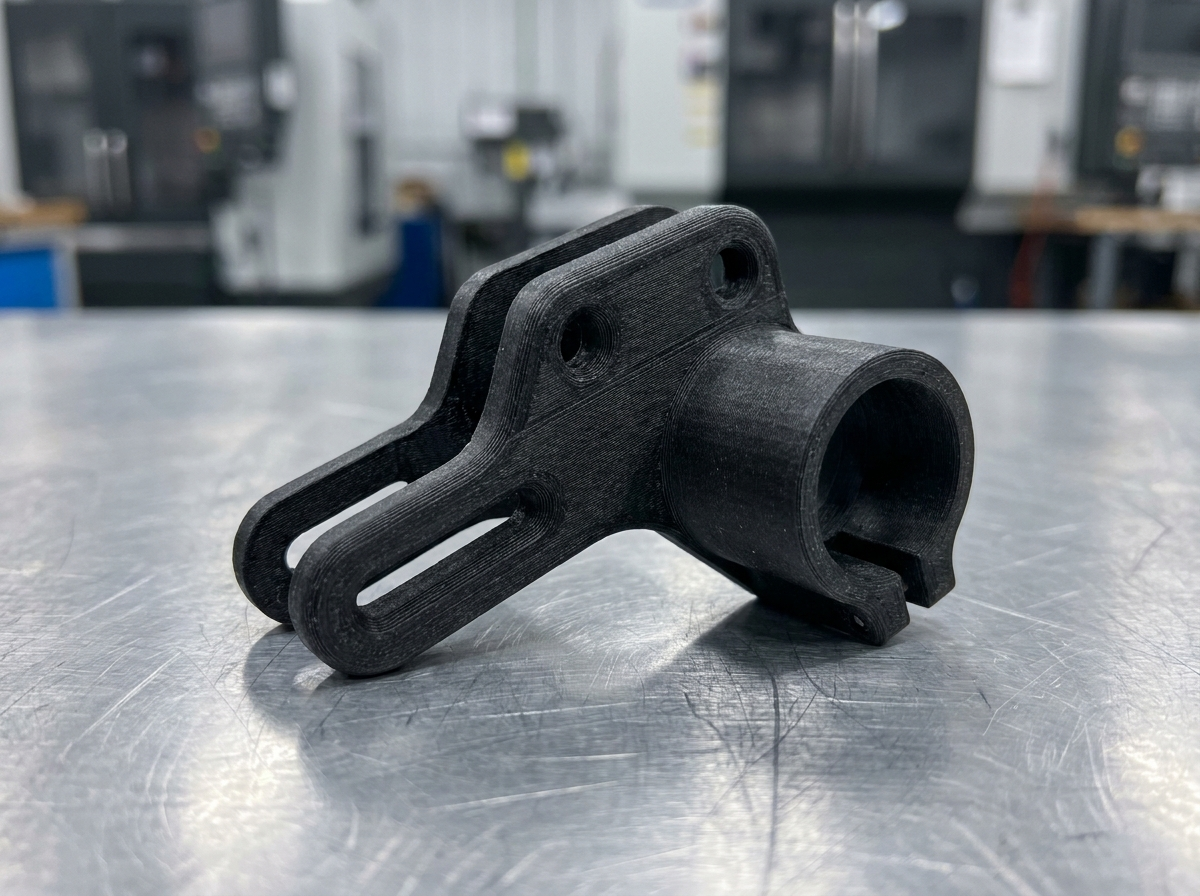

Conveyor Oven Exit Sensor Mount
Fixed-position mount for an IR temperature sensor at the exit of a powder coat curing oven. Ambient bracket temp measured at 130°C — PETG-CF options were ruled out.
QTY · 3
4 days
± 0.15 mm

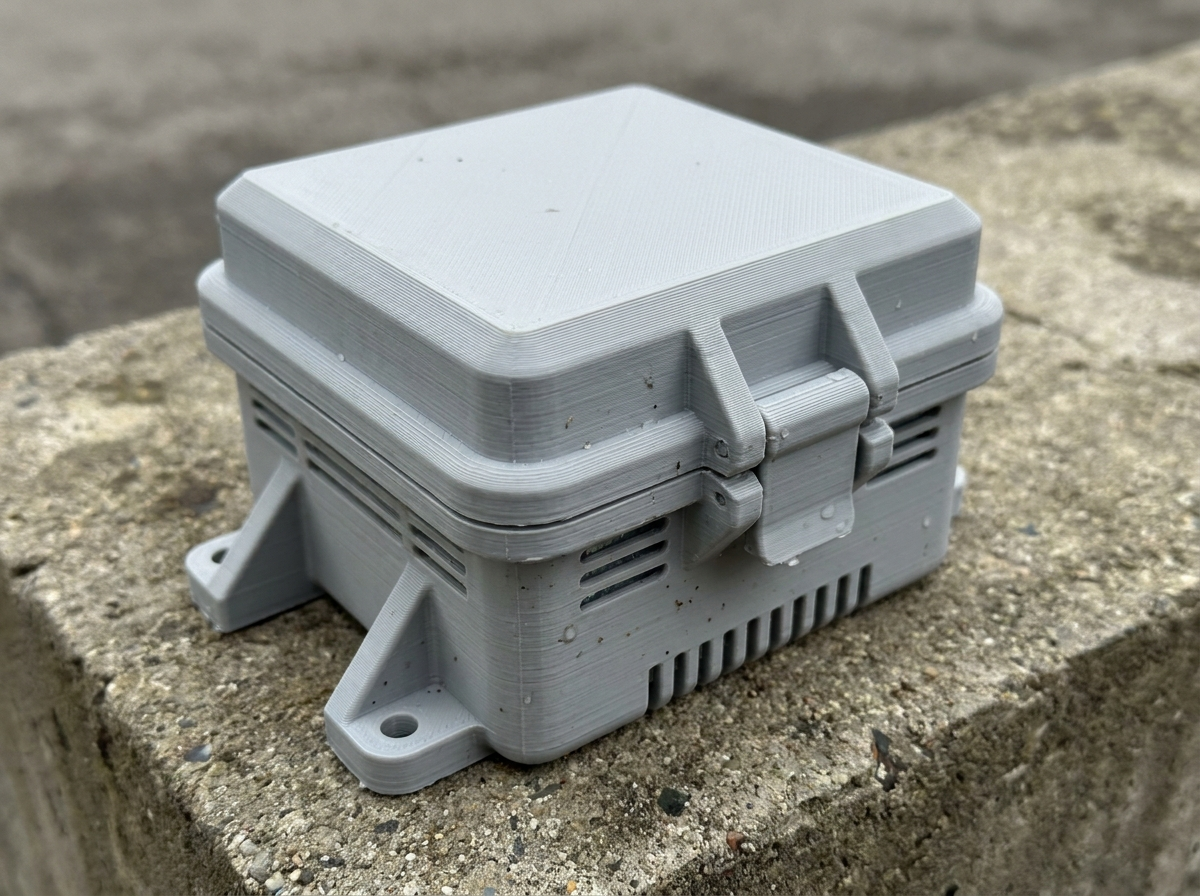

Outdoor Ambient Sensor Housing
Weatherproof snap-fit housing for a temp/humidity sensor mounted on the exterior of a manufacturing building. The PETG-CF version lasted one summer before UV degradation cracked the lid hinge.
QTY · 6
4 days
± 0.20 mm
Op-2 Part Nesting Tray
Six-up nesting tray for finished parts between op-1 and op-2. Recurring order — shop replaces a damaged tray every 6–8 weeks.
QTY · 8
5 days
± 0.20 mm

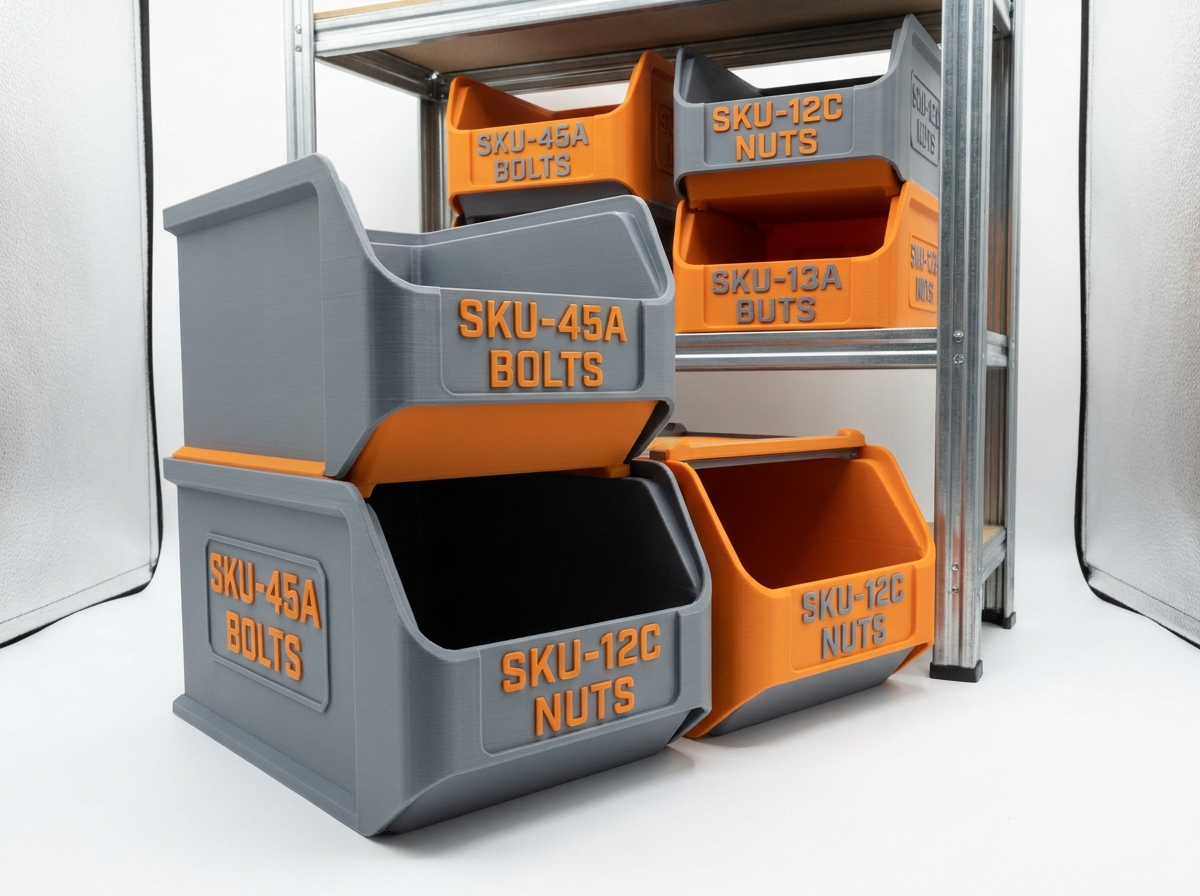

Kanban Bin Set with Embossed Labels
A set of 24 bins for a hardware kanban shelf, each with an embossed SKU and revision in two-color print.
QTY · 24
6 days
± 0.30 mm

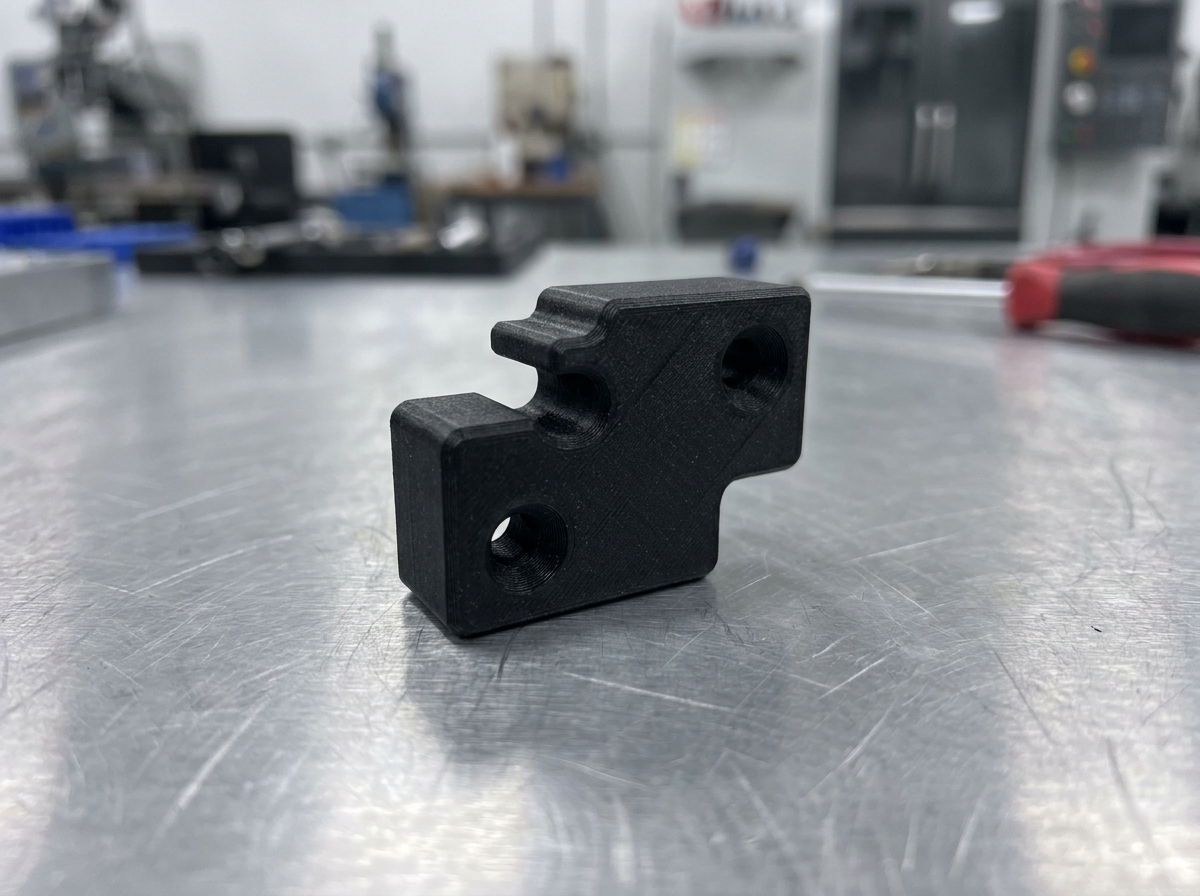

Assembly Poka-Yoke Locating Block
Keyed locating block that prevents mis-loaded parts in an assembly fixture. Asymmetric profile physically enforces correct orientation — no visual check required.
QTY · 10
3 days
± 0.15 mm

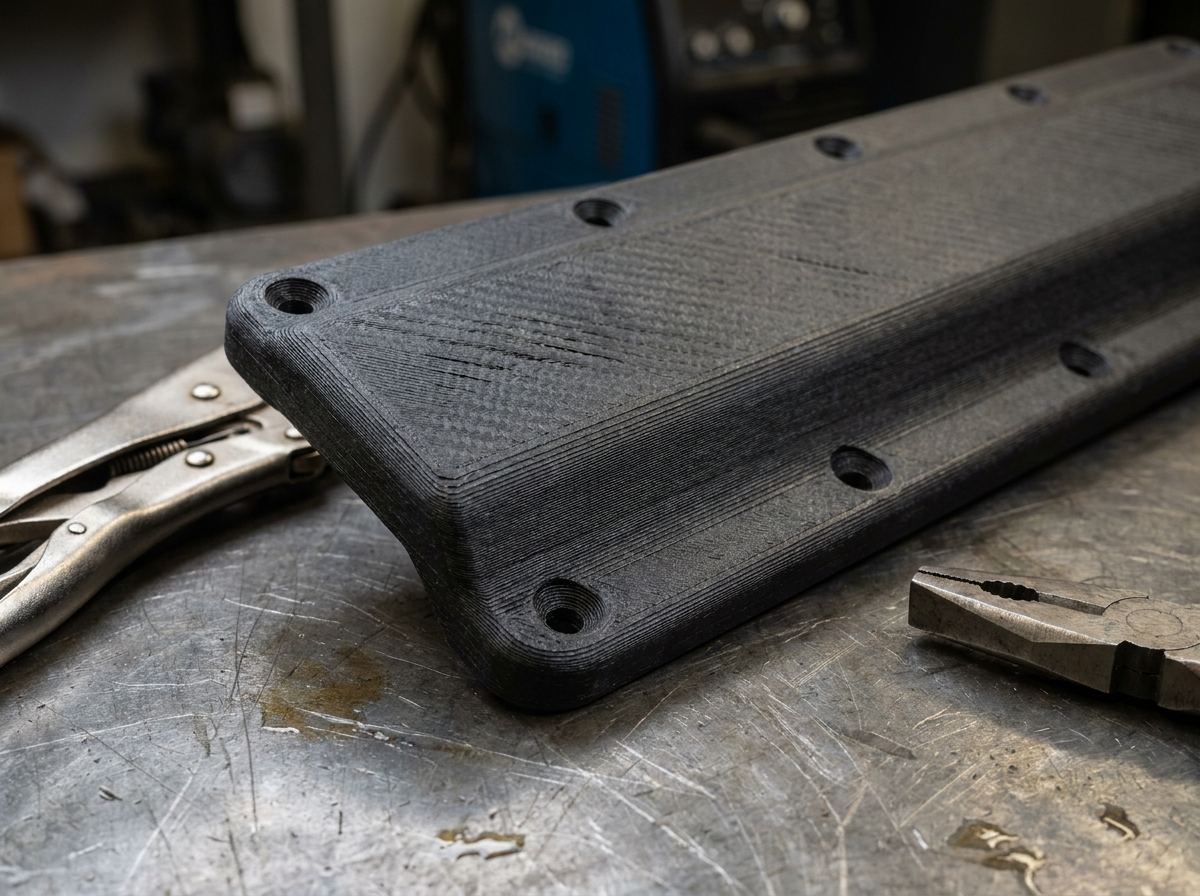

Weld Fixture Heat Shield
Profile-fitted heat shield protecting locating pins in a MIG tacking fixture from spatter and radiant heat. Previous PETG-CF version warped within 50 weld cycles.
QTY · 4
3 days
± 0.25 mm
